Principles of wind and dust prevention

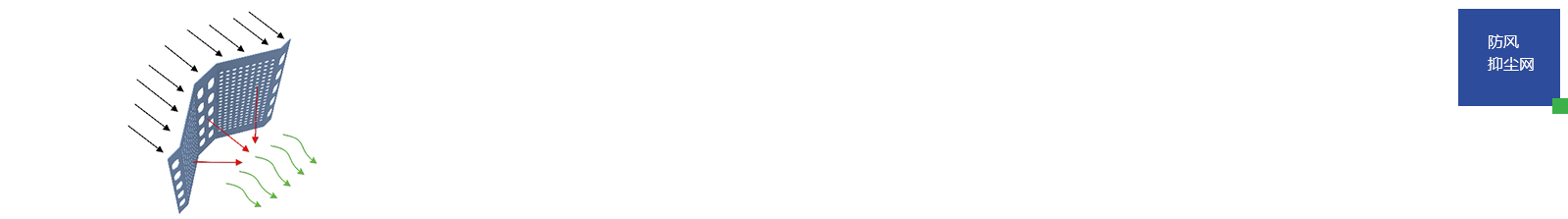

Wind and dust suppression nets are made using the principles of aerodynamics, and processed into certain geometric shapes, hole ratios, and different hole combinations of wind and dust suppression walls according to the results of on-site environmental wind tunnel experiments. When the circulating air (strong wind) passes through the wall from the outside, it forms an upper and lower interfering airflow on the inside of the wall to achieve the effect of strong wind on the outside, weak wind on the inside, small wind on the outside, and no wind on the inside, thereby preventing the flying of dust.

The dust suppression effect of a single-layer wind and dust suppression net can reach 65-85%, and the dust suppression effect of a double-layer wind and dust suppression net can reach over 95%.

Wind and dust suppression net product types

Single peak type:

The forming width is between 250mm and 500mm, the peak height is between 50mm and 100mm, the length is within 6 meters, and the thickness of the board is 0. 5mm-1. Within a range of 5mm; Materials: Low carbon steel plate, galvanized plate, color coated steel plate, aluminum magnesium alloy plate, stainless steel plate. Surface treatment: electrostatic powder spraying.

Bimodal:

The forming width is between 400mm and 600mm, the peak height is 50mm-100mm, the length is within 6 meters, and the thickness of the board is 0. 5mm-1. Within a range of 5mm; Materials: Low carbon steel plate, galvanized plate, color coated steel plate, aluminum magnesium alloy plate, stainless steel plate. Surface treatment: electrostatic powder spraying.

Triple peak type:

There are two types of forming widths: 810mm and 910mg, with peak heights of 50mm-80mm and lengths within 6 meters. The thickness of the board is 0. 5mm-1. 5mm. Materials: Low carbon steel plate, galvanized plate, color coated steel plate, aluminum magnesium alloy plate, stainless steel plate. Surface treatment: electrostatic powder spraying.

Application scope of wind and dust suppression nets

·Wind and dust suppression nets are mainly used for wind and dust suppression in coal storage yards of enterprises such as coal mines, coking plants, and power plants;

·Ports, docks, coal storage plants, and various material yards;

·Dust suppression in various open-air material yards of steel, building materials, cement and other enterprises;

·Crop windproof, desertification weather dustproof and other harsh environments;

·Railway and highway coal transportation stations, coal storage yards, construction sites, road dust suppression, both sides of highways, etc.

Specification and model of wind and dust suppression net

Technical parameter table for wind and dust suppression nets
